LOFRANS' Hot dip galvanized chain, Calibrated

This chain made of steel grade 40 exhibits higher tensile strength and it is hot dip galvanized for enhanced corrosion resistance. They are produced following the strictest procedures and comply with international standards and class societies and regulations. The chain has an authenticity check “LFR” engraved link located every 30 cm.



  • Steel Grade 40
  • Hot Dip Galvanized
  • Extended quality testing
  • Certificate of Analysis for every drum included
  • Lofrans’ Authenticity Check -“LFR”
LOFRANS' Hot dip galvanized chain, Calibrated_photo-0 LOFRANS' Hot dip galvanized chain, Calibrated_photo-1
Printer Friendly Version

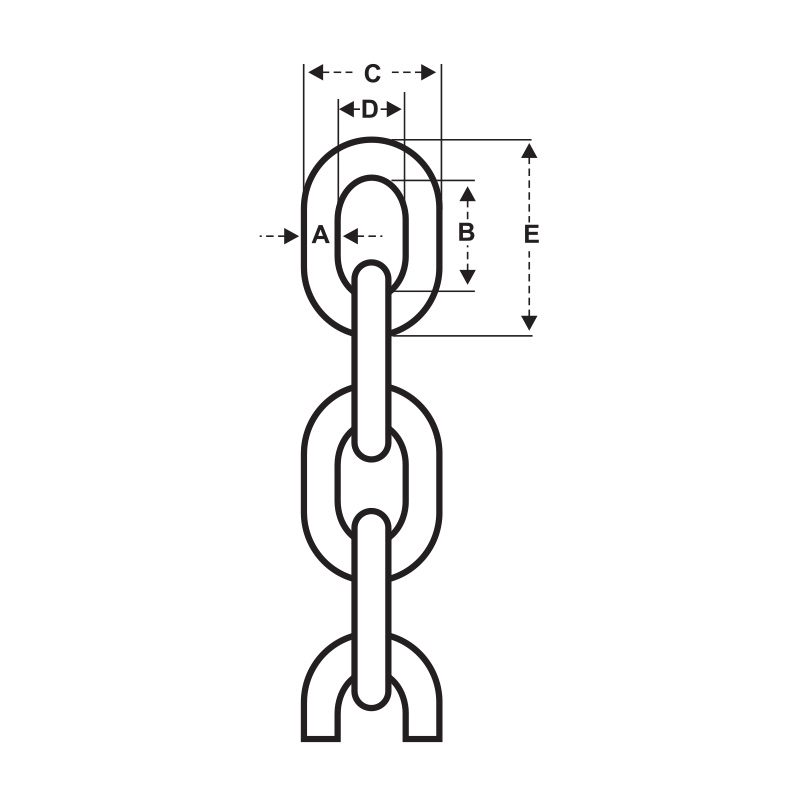

Code A (mm) B (mm) C (mm) D (mm) E (mm) Weight / m (kg) Available Pack (m) Type Breaking Load (kg)
72312 6 18,5 20 8 30,5 0,8 Carton Drum / 120 ISO 4565 / DIN 766 2400
723121 6 18,5 20 8 30,5 0,8 Pallet Box/ 400 ISO 4565 / DIN 766 2400
72313 8 24 27,5 11,5 40 1,42 Carton Drum / 120 ISO 4565 / DIN 766 4300
723131 8 24 27,5 11,5 40 1,42 Pallet Box/ 400 ISO 4565 / DIN 766 4300
72314 10 28 34 14 48 2,2 Carton Drum / 120 DIN 766 6750
723141 10 28 34 14 48 2,2 Pallet Box/ 300 DIN 766 6750
72315 10 30 34,5 14,5 50 2,14 Carton Drum / 120 ISO 4565 6750
723151 10 30 34,5 14,5 50 2,14 Pallet Box/ 300 ISO 4565 6750
72316 12 36 39,6 15,6 60 3,23 Carton Drum / 120 ISO 4565 9700
723161 12 36 39,6 15,6 60 3,23 Pallet Box/ 300 ISO 4565 9700
72408 14 41,5 47,4 19,4 69,5 4,37 Carton Drum / 200 DIN 766 13230
72409 16 45 54,6 22,6 77 5,72 Carton Drum / 200 DIN 766 17280
72749 6 18,5 20 8 30,5 0,8 Bag / 30 ISO 4565 / DIN 766 2400
72750 6 18,5 20 8 30,5 0,8 Bag / 50 ISO 4565 / DIN 766 2400
72751 8 24 27,5 11,5 40 1,42 Bag / 30 ISO 4565 / DIN 766 4300
72752 8 24 27,5 11,5 40 1,42 Bag / 50 ISO 4565 / DIN 766 4300
72753 10 30 34,5 14,5 50 2,14 Bag / 30 ISO 4565 6750
72754 10 30 34,5 14,5 50 2,14 Bag / 50 ISO 4565 6750
72755 12 36 39,6 15,6 60 2,14 Bag / 50 ISO 4565 9700
