Radio Remote Control

Radio Remote Control

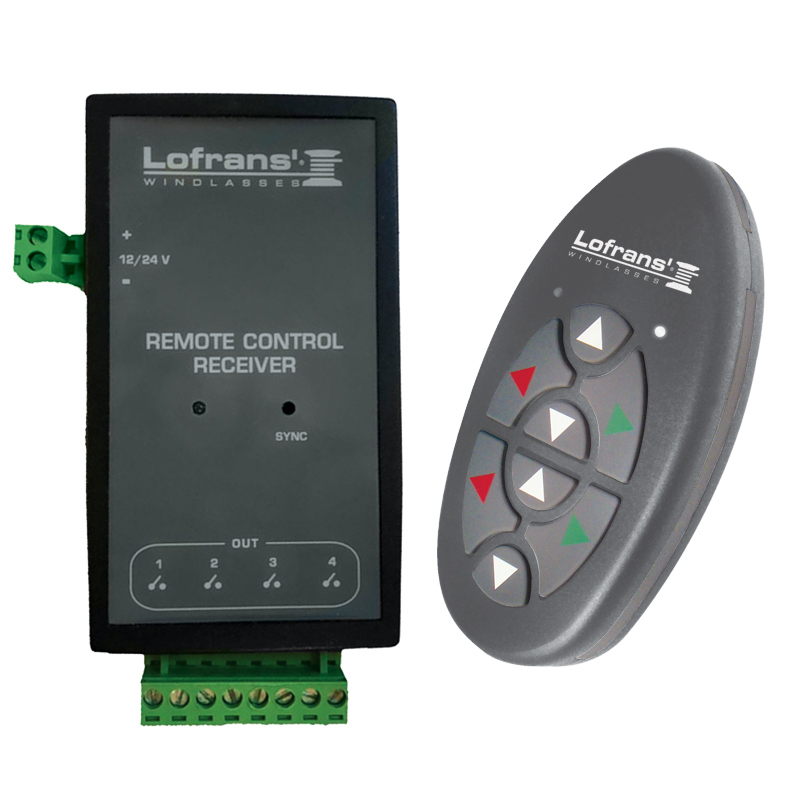

Lofrans' radio remote control is designed to work with our range of windlasses. The remote control can also be used to operate other onboard equipment such as thrusters, passerelles, cranes, etc.

  • Transmitter rated IP67
  • Supports up to 8 independently controlled channels
  • Each receiver can switch 4 channels (12/24 V - 2 A)
  • Each transmitter can handle 2 receivers (8 channels)
  • Digital recognition avoids accidental activation of other system
  • Zero power consumption when in standby mode (transmitter)
  • Easy to install and set up, simple to use

**868 MHz is the authorised frequency for Europe and Australia. 915 MHz is the authorised frequency for Canada and the USA. Retail sales and use of non-authorised frequency transmitters and receivers is prohibited. For all other countries please consult the local regulation in force.



Code Description Dimension (mm) Frequency IP protection rated Max Contacts Amperage (A) Number of Button Operative temperature Voltage Weight (gr)
312976 Transmitter & Receiver (EU) 114x60x22 (transmitter) / 126x78x23 (Receiver) 868 MHz 67 (Transmitter) 2 (Receiver) 8 (Transmitter) -10:+60 12-24 Vdc (Receiver) 310
312977 Transmitter & Receiver (USA) 114x60x22 (transmitter) / 126x78x23 (Receiver) 915 MHz 67 (Transmitter) 2 (Receiver) 8 (Transmitter) -10:+60 12-24 Vdc (Receiver) 310
File
Installation And Users Manual - Remote Control Download
Technical Drawing - Radio Remote Control Download
