Name: TIGRES - Horizontal Windlass
Brand: Lofrans

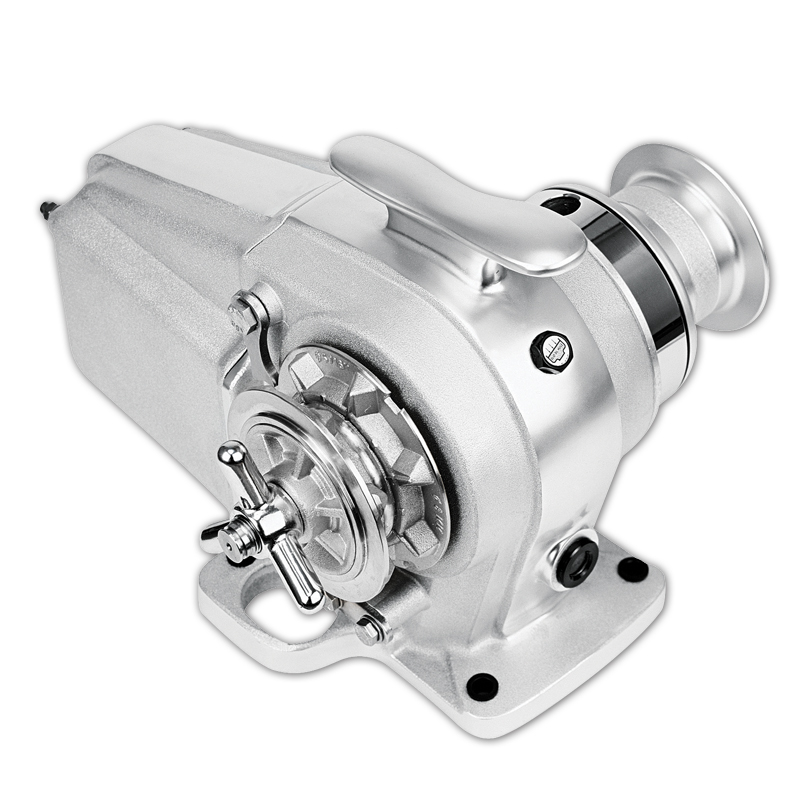

TIGRES - Horizontal Windlass

Main Features:

Rope Kit is available for all TIGRES - Horizontal Windlasses.

The codes: 636766, 636767, 636768, 636769, 636691 & 636692, include the Rope Kit.

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Printer Friendly Version

Code	Amps at Working Load (A)	Circuit Breaker	Gypsy For Chain	Line Speed at W.L	Max Line Speed	Maximum Pull	Motor size	Net Weight	Power Supply	Type	Working load (kg)	Rope Kit

220290	90		10 mm, ISO 4565	16 m/min	33 m/min	1400 kg	1500 W	28 kg	24 V	With Drum	195	Not Included
418407	160		8 mm, ISO 4565 DIN 766	14 m/min	33 m/min	1350 kg	1500 W	28 kg	12 V	With Drum	195	Not Included
418409	90		8 mm, ISO 4565 DIN 766	16 m/min	33 m/min	1400 kg	1500 W	28 kg	24 V	With Drum	195	Not Included
470060	160		10 mm, ISO 4565	14 m/min	33 m/min	1350 kg	1500 W	28 kg	12 V	With Drum	195	Not Included
600055	160		10 mm, DIN 766	14 m/min	33 m/min	1350 kg	1500 W	28 kg	12 V	With Drum	195	Not Included
600059	90		10 mm, DIN 766	16 m/min	33 m/min	1400 kg	1500 W	28 kg	24 V	With Drum	195	Not Included

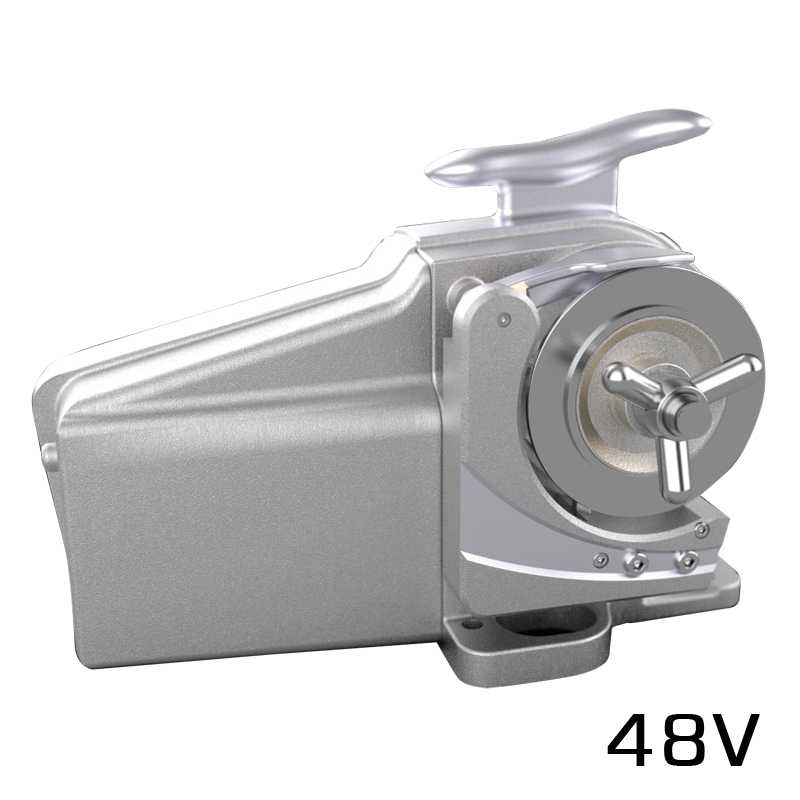

636691	33	187331	8 ISO-5/16	20 m/min	20 m/min	1000 kg	1500 W	30 kg	48 V	With Drum	120	Included
636692	33	187331	10 ISO-3/8	20 m/min	20 m/min	1000 kg	1500 W	30 kg	48 V	With Drum	120	Included
636766	160	187333	8 mm ISO - 5/16” HT and 14mm 3-strand or 8 plaited rope	14 m/min	33 m/min	1500 kg	1500 W	28 kg	12 V	With Drum	190	Included
636767	160	187333	10 mm ISO-3/8” HT and 16mm 3-strand or 8 plaited rope	14 m/min	33 m/min	1500 kg	1500 W	28 kg	12 V	With Drum	190	Included
636768	90	187332	8 mm ISO - 5/16” HT and 14mm 3-strand or 8 plaited rope	16 m/min	33 m/min	1590 kg	1500 W	28 kg	24 V	With Drum	200	Included
636769	90	187332	10 mm ISO-3/8” HT and 16mm 3-strand or 8 plaited rope	16 m/min	33 m/min	1590 kg	1500 W	28 kg	24 V	With Drum	200	Included
