RAZZA - Horizontal Windlass

Main Features:

  • Marine AISI 316L Stainless Steel construction
  • Manual chain release
  • Delivered with rocker switch
  • Chain counter sensor & magnet preinstalled
  • Chain & rope management by the spring loaded finger
  • IP67 motor cover



Standard Equipment:

  • Dual direction solenoid pack
  • Handle
  • Gypsy for chain & rope
  • QR code for Instruction manual
RAZZA - Horizontal Windlass_photo-0
Printer Friendly Version

Code Motor size Power Supply Maximum Pull Working load (kg) Amps at Working Load (A) Line Speed at W.L Max Line Speed Net Weight Gypsy For Chain Gypsy For Rope
600135 800 W 12 V 900 kg 125 kg 80 20 m/min 25 m/min 13,5 kg 7 mm, ISO 4565 10-12-14 mm, 3-strand
600136 500 W 12 V 630 kg 95 kg 65 18 m/min 24 m/min 13,5 kg 7 mm, ISO 4565 10-12-14 mm, 3-strand
636699 800 W 12 V 900 kg 125 kg 80 20 m/min 25 m/min 13,5 kg 8 mm, ISO 4565/ DIN 766 12 mm, 3-strand
636738 500 W 12 V 630 kg 95 kg 65 18 m/min 24 m/min 13,5 kg 6 mm, ISO 4565 10-12 mm, 3-strand
636739 500 W 12 V 630 kg 95 kg 65 18 m/min 24 m/min 13,5 kg 8 mm, ISO 4565/ DIN 766 12 mm, 3-strand
636740 800 W 12 V 900 kg 125 kg 80 20 m/min 25 m/min 13,5 kg 6 mm, ISO 4565 10-12 mm, 3-strand
File
Installation And User's Manual _ Dorado - Kobra - Razza Download
RAZZA Horizontal Windlass_Product Announcement_EN Download
RAZZA Horizontal Windlass_Product Announcement_IT Download
EXPLODED-VIEW_Razza Download

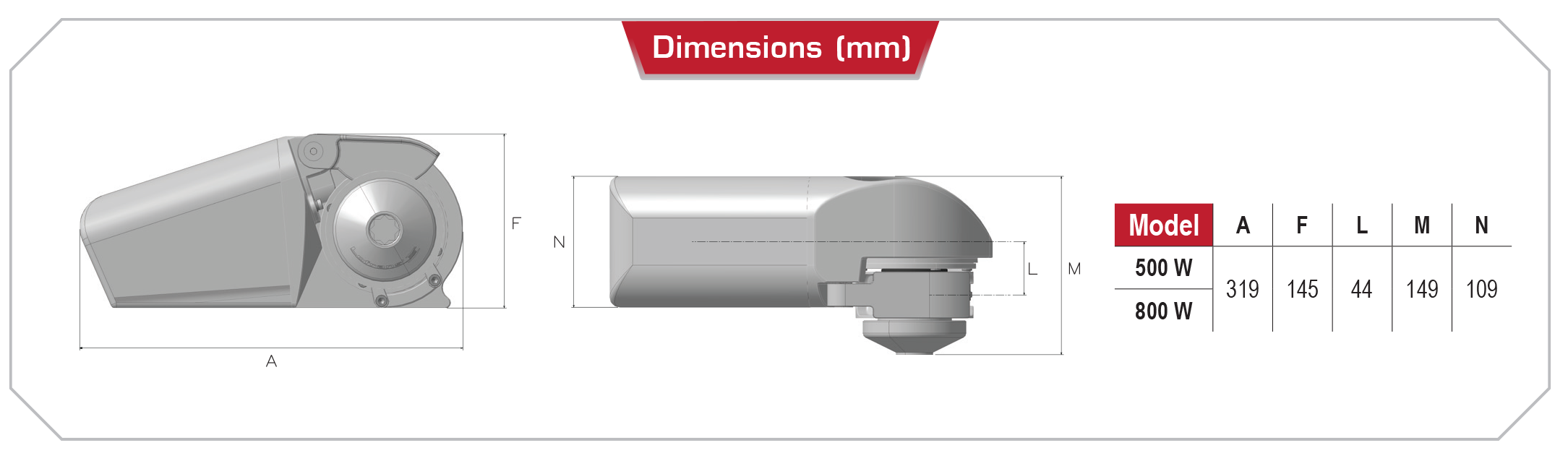

OVERALL_Dimentions_RAZZA Download
Drilling Template Razza Download
