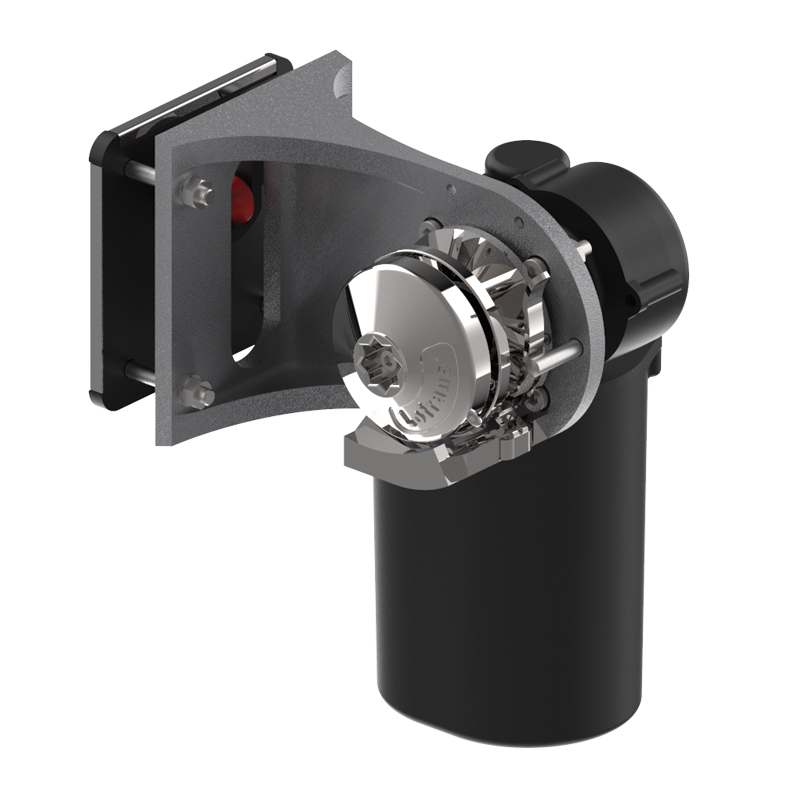

GECKO Stern Windlass ALU 12V only Rope

GECKO Stern Windlass ALU 12V only Rope

It features horizontal configuration for easy installation in the stern of the boat inside the anchor locker compartment, keeping the boat's appearance unaffected.

Its installation needs very limited space, as the motor/gearbox can rotate up to 180°at 60° increments.

Available in two different configurations, for installation in the port or starboard side of the transom. Each unit is equipped with a handle, rope guide, pressure finger and control box.

Available in 2 motor versions, 12V 600W and 900W.

An ideal anchoring system for vessels from 20 to 45 feet.

Main features:

  • IP67 protective cover for the motor
  • Anodised marine aluminium gearbox
  • Automatic free fall operation with the push of a button
  • Automatic stop function for carefree anchoring
  • For use with 12/14/16 mm 3-strand or leaded rope
  • Compact design
  • Easy installation
  • Italian design


Code Watt Power Supply Maximum Pull Working load (kg) Amps Work Load (A) Line Speed at W.L Max Line Speed Circuit Breaker Control Box
636633 900 12V 700 125 80 20 25 187332 Included in the package
636645 600 12V 630 95 65 18 24 187331 Included in the package
File
GECKO Manual Download
GECKO Stern Windlass_Product Announcement_EN Download
Gecko Stern Windlass Download
Deck Template_Gecko Download
Deck Template_Gecko (pdf) Download
