Name: X2 - Vertical Windlass
Brand: Lofrans

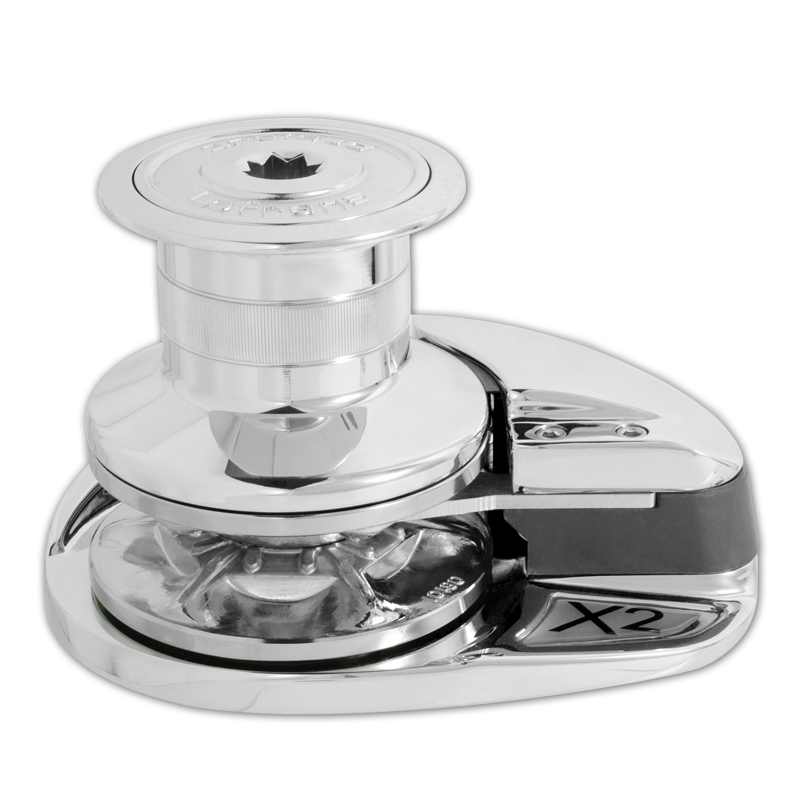

The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model.

The standard features that you can meet in every X series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.
There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Manual override so that the chain or rope can be recovered manually in case of electric function failure (800W chrome variant does not have the manual override function).

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Printer Friendly Version

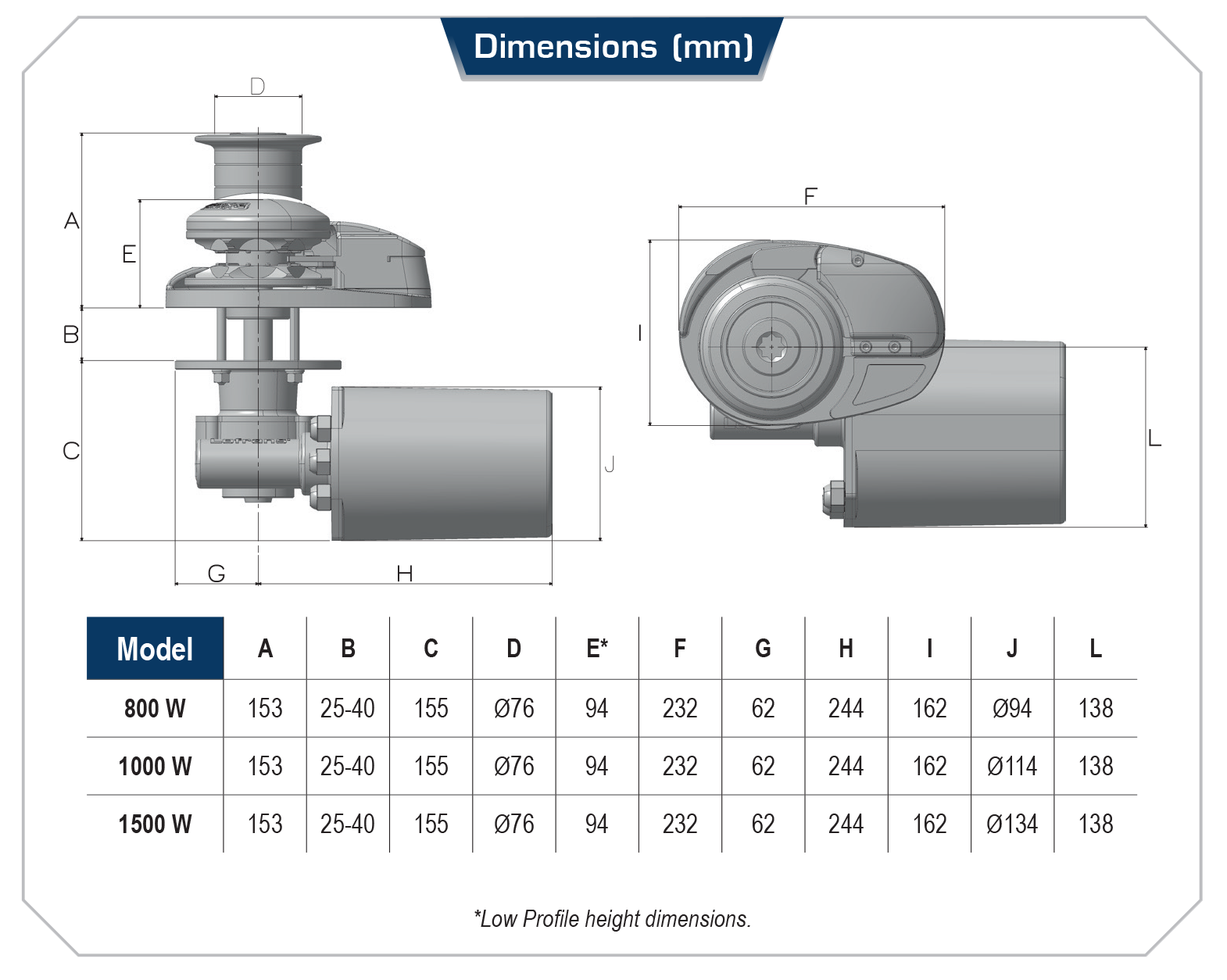

Code	Circuit Breaker	Construction	Gypsy For Chain	Gypsy For Rope	Line Speed at W.L	Max Line Speed	Maximum Pull	Motor size	Net Weight	Power Supply	Type	Amps at Working Load (A)	Working load (kg)

187273	187333	Chrome Plated	10 mm, DIN 766	-	17 m/min	40 m/min	1200 kg	1500 W	24 kg	12 V	Low Profile	130	165
187274	187333	Chrome Plated	10 mm, DIN 766	-	17 m/min	40 m/min	1200 kg	1500 W	25 kg	12 V	With Drum	130	165
187276	187332	Chrome Plated	10 mm, DIN 766	-	19 m/min	40 m/min	1270 kg	1500 W	25 kg	24 V	With Drum	65	175
472557	187333	Anodised Aluminium	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	20 m/min	40 m/min	1000 kg	1000 W	19 kg	12 V	Low Profile	117	150
472558	187332	Anodised Aluminium	8 mm, ISO 4556 DIN 766	14 mm,3-strand	26 m/min	35 m/min	850 kg	800 W	18 kg	12 V	Low Profile	110	115
472735	187332	Anodised Aluminium	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	26 m/min	35 m/min	850 kg	800 W	19 kg	12 V	With Drum	110	115
472750	187332	Anodised Aluminium	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	23 m/min	40 m/min	1060 kg	1000 W	24 kg	24 V	With Drum	59	160
472751	187333	Anodised Aluminium	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	20 m/min	40 m/min	1000 kg	1000 W	20 kg	12 V	With Drum	117	150
472861	187332	Chrome Plated	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	26 m/min	35 m/min	850 kg	800 W	21 kg	12 V	Low Profile	110	115
472862	187332	Chrome Plated	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	26 m/min	35 m/min	850 kg	800 W	23 kg	12 V	With Drum	110	115
472863	187333	Chrome Plated	10 mm, ISO 4565	-	20 m/min	40 m/min	1000 kg	1000 W	24 kg	12 V	With Drum	117	150
472864	187333	Chrome Plated	10 mm, ISO 4565	-	20 m/min	40 m/min	1000 kg	1000 W	23 kg	12 V	Low Profile	117	150
473212	187333	Chrome Plated	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	20 m/min	40 m/min	1000 kg	1000 W	24 kg	12 V	With Drum	117	150
473213	187333	Chrome Plated	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	20 m/min	40 m/min	1000 kg	1000 W	23 kg	12 V	Low Profile	117	150
473226	187332	Chrome Plated	10 mm, DIN 766	-	23 m/min	40 m/min	1060 kg	1000 W	23 kg	24 V	Low Profile	59	160
473227	187332	Chrome Plated	10 mm, DIN 766	-	23 m/min	40 m/min	1060 kg	1000 W	24 kg	24 V	With Drum	59	160
473255	187332	Chrome Plated	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	23 m/min	40 m/min	1060 kg	1000 W	24 kg	24 V	With Drum	59	160
478642	187332	Chrome Plated	10 mm, ISO 4565	-	23 m/min	40 m/min	1060 kg	1000 W	23 kg	24 V	Low Profile	59	160
57450	187332	Anodised Aluminium	10 mm, ISO 4565	-	20 m/min	40 m/min	1000 kg	1000 W	19 kg	12 V	Low Profile	117	150
600044	187332	Anodised Aluminium	6 mm, ISO 4565 DIN 766	-	26 m/min	35 m/min	850 kg	800 W	19 kg	12 V	With Drum	110	115
600045	187332	Anodised Aluminium	6 mm, ISO 4565 DIN 766	-	26 m/min	35 m/min	850 kg	800 W	18 kg	12 V	Low Profile	110	115
600046	187332	Chrome Plated	6 mm, ISO 4565 DIN 766	-	26 m/min	35 m/min	850 kg	800 W	23 kg	12 V	With Drum	110	115
600047	187332	Chrome Plated	6 mm, ISO 4565 DIN 766	-	26 m/min	35 m/min	850 kg	800 W	21 kg	12 V	Low Profile	110	115
600049	187333	Anodised Aluminium	6 mm, ISO 4565 DIN 766	-	20 m/min	40 m/min	1000 kg	1000 W	20 kg	12 V	With Drum	117	150
600050	187333	Anodised Aluminium	6 mm, ISO 4565 DIN 766	-	20 m/min	40 m/min	1000 kg	1000 W	19 kg	12 V	Low Profile	117	150
600053	187333	Anodised Aluminium	10 mm, ISO 4565	-	20 m/min	40 m/min	1000 kg	1000 W	20 kg	12 V	With Drum	117	150
600054	187332	Chrome Plated	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	23 m/min	40 m/min	1060 kg	1000 W	23 kg	24 V	Low Profile	59	160
600056	187333	Anodised Aluminium	10 mm, ISO 4565	-	17 m/min	40 m/min	1200 kg	1500 W	25 kg	12 V	With Drum	130	165
600057	187333	Anodised Aluminium	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	25 kg	12 V	With Drum	130	165
600060	187332	Anodised Aluminium	10 mm, ISO 4565	-	19 m/min	40 m/min	1270 kg	1500 W	25 kg	24 V	With Drum	65	175
600061	187332	Anodised Aluminium	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	19 m/min	40 m/min	1270 kg	1500 W	25 kg	24 V	With Drum	65	175
600989	187333	Chrome Plated	6 mm, ISO 4565 DIN 766	-	20 m/min	40 m/min	1000 kg	1000 W	23 kg	12 V	Low Profile	117	150
600997	187333	Chrome Plated	6 mm, ISO 4565 DIN 766	-	20 m/min	40 m/min	1000 kg	1000 W	24 kg	12 V	With Drum	117	150
601006	187333	Chrome Plated	8mm ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	24 kg	12 V	Low Profile	130	165
601008	187333	Chrome Plated	10 mm, ISO 4565	-	17 m/min	40 m/min	1200 kg	1500 W	24 kg	12 V	Low Profile	130	165
601011	187332	Chrome Plated	10 mm, ISO 4565	-	23 m/min	40 m/min	1060 kg	1000 W	24 kg	24 V	With Drum	59	160
601013	187332	Chrome Plated	10 mm, ISO 4565	-	17 m/min	40 m/min	1200 kg	1500 W	25 kg	12 V	With Drum	130	165
601028	187332	Chrome Plated	6 mm, ISO 4565/DIN 766	-	23 m/min	40 m/min	1060 kg	1000 W	23 kg	24 V	Low Profile	59	160
601034	187332	Chrome Plated	6 mm, ISO 4565/DIN 766	-	23 m/min	40 m/min	1060 kg	1000 W	24 kg	24 V	With Drum	59	160
601039	187332	Chrome Plated	8 mm ISO 4565/DIN 766	14 mm, 3-strand	19 m/min	40 m/min	1270 kg	1500 W	24 kg	24 V	Low Profile	65	175
601041	187332	Chrome Plated	10 mm, DIN 766	-	19 m/min	40 m/min	1270 kg	1500 W	24 kg	24 V	Low Profile	65	175
601044	187332	Chrome Plated	10 mm, ISO 4565	-	19 m/min	40 m/min	1270 kg	1500 W	25 kg	24 V	With Drum	65	175
601052	187333	Anodised Aluminium	10 mm, DIN 766	-	20 m/min	40 m/min	1000 kg	1000 W	20 kg	12 V	With Drum	117	150
601053	187333	Anodised Aluminium	8 mm ISO 4565/DIN 766	14 mm, 3-strand	17 m/min	40 m/min	1200 kg	1500 W	24 kg	12 V	Low Profile	130	165
601054	187333	Anodised Aluminium	10 mm, ISO 4565	-	17 m/min	40 m/min	1200 kg	1500 W	24 kg	12 V	Low Profile	130	165
601055	187333	Anodised Aluminium	10 mm, DIN 766	-	17 m/min	40 m/min	1200 kg	1500 W	24 kg	12 V	Low Profile	130	165
601057	187333	Anodised Aluminium	10 mm, DIN 766	-	17 m/min	40 m/min	1200 kg	1500 W	25 kg	12 V	With Drum	130	165
601058	187332	Anodised Aluminium	6 mm, ISO 4565/DIN 766	-	23 m/min	40 m/min	1060 kg	1000 W	23 kg	24 V	Low Profile	59	160
601059	187332	Anodised Aluminium	8 mm ISO 4565/DIN 766	14 mm, 3-strand	23 m/min	40 m/min	1060 kg	1000 W	23 kg	24 V	Low Profile	59	160
601060	187332	Anodised Aluminium	10 mm, ISO 4565	-	23 m/min	40 m/min	1060 kg	1000 W	23 kg	24 V	Low Profile	59	160
601061	187332	Anodised Aluminium	10 mm, DIN 766	-	23 m/min	40 m/min	1060 kg	1000 W	23 kg	24 V	Low Profile	59	160
601062	187332	Anodised Aluminium	6 mm, ISO 4565/DIN 766	-	23 m/min	40 m/min	1060 kg	1000 W	24 kg	24 V	With Drum	59	160
601063	187332	Anodised Aluminium	10 mm, ISO 4565	-	23 m/min	40 m/min	1060 kg	1000 W	24 kg	24 V	With Drum	59	160
601064	187332	Anodised Aluminium	10 mm, DIN 766	-	23 m/min	40 m/min	1060 kg	1000 W	24 kg	24 V	With Drum	59	160
601065	187332	Anodised Aluminium	8 mm, ISO 4565 DIN 766	14 mm, 3-strand	19 m/min	40 m/min	1270 kg	1500 W	24 kg	24 V	Low Profile	65	175
601066	187332	Anodised Aluminium	10 mm, ISO 4565	-	19 m/min	40 m/min	1270 kg	1500 W	24 kg	24 V	Low Profile	65	175
601067	187332	Anodised Aluminium	10 mm, DIN 766	-	19 m/min	40 m/min	1270 kg	1500 W	24 kg	24 V	Low Profile	65	175
601068	187332	Anodised Aluminium	10 mm, DIN 766	-	19 m/min	40 m/min	1270 kg	1500 W	25 kg	24 V	With Drum	65	175
602096	187333	Chrome Plated	10 mm, DIN 766	-	20 m/min	40 m/min	1000 kg	1000 W	24 kg	12 V	With Drum	117	150
602097	187333	Chrome Plated	10 mm, DIN 766	-	20 m/min	40 m/min	1000 kg	1000 W	23 kg	12 V	Low Profile	117	150
602529	187332	Chrome Plated	10 mm, ISO 4565	-	19 m/min	40 m/min	1270 kg	1500 W	24 kg	24 V	Low Profile	65	175
