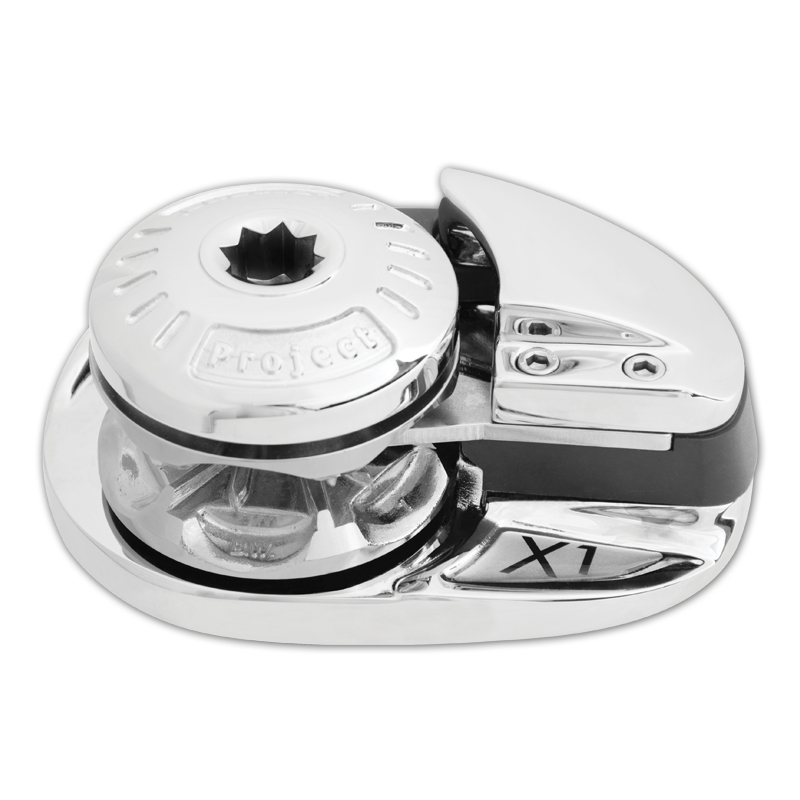

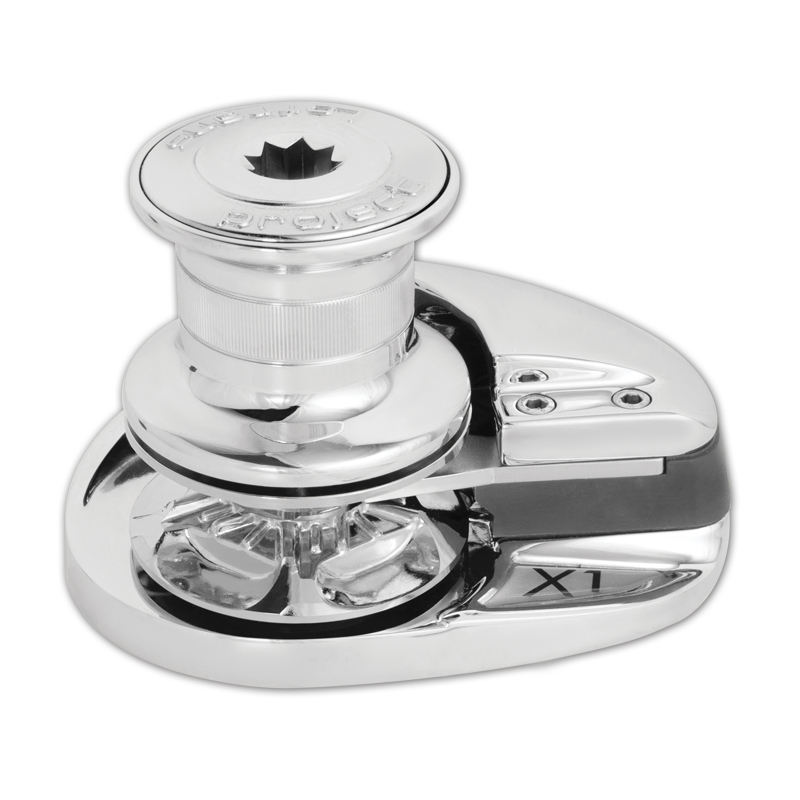

Name: X1 - Vertical Windlass
Brand: Lofrans

The "X" vertical windlasses are suitable for sail and motor boats from 6m to 27m in length. They have different motorization attributes according to each model. For the X2 windlass and X3 windlass there is a Plus version of stainless steel AISI 316L mirror polishing which offers a stronger protection against corrosion.

The standard features that you can meet in every X series windlass are:

Watertight stainless steel ball bearing in the base (for better functionality and zero maintenance) which is a unique feature in the windlass market.
The clutch is made by two conical discs connected to the main shaft by two parallel planes on the shaft, in order to avoid using keys and allocate the weight load properly.
The electric motor and gearbox are connected by a particular coupling that is made by a socket for easier maintenance.

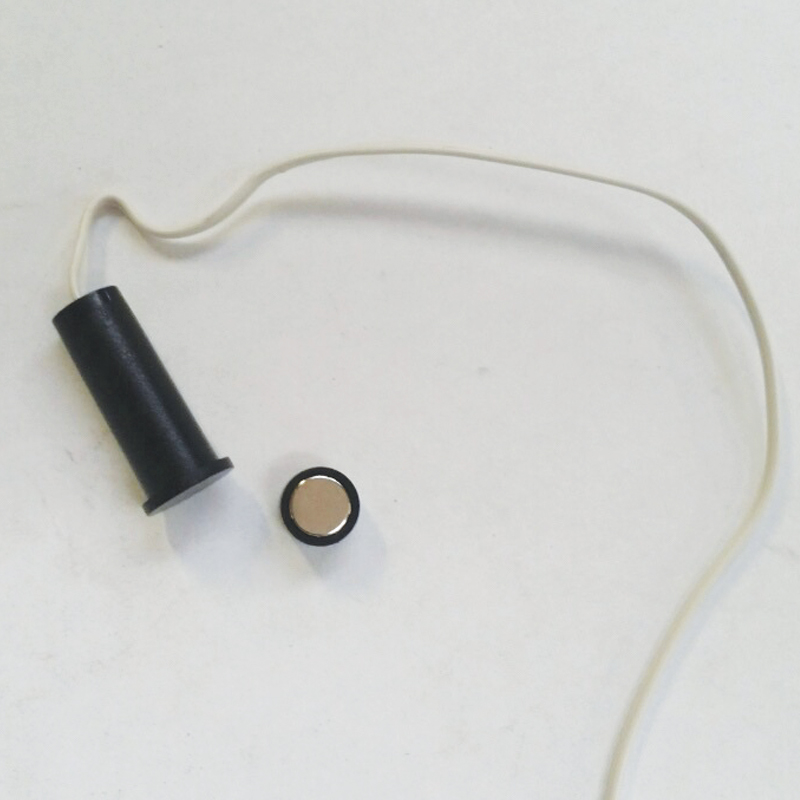

There is a sensor in the base and a magnet into the gipsy so they can be connected to a chain counter.
Manual override so that the chain or rope can be recovered manually in case of electric function failure (this feature is not available in the X1 model).

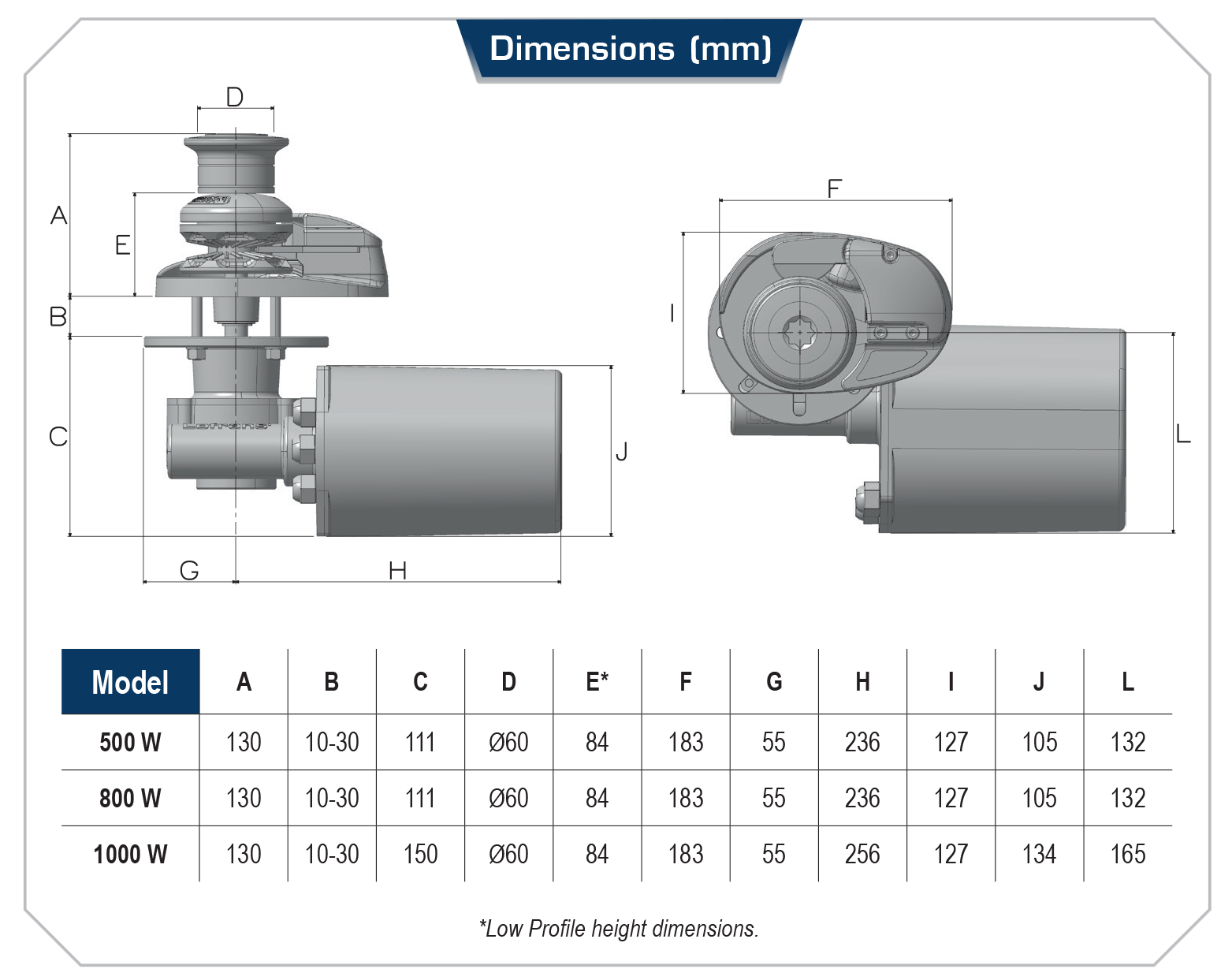

Windlass Models / Technical Information

To select the proper anchor windlass, you must determine whether it's for a light or heavy use, so we have created a Windlass Selection Tool to help you. Please note that this tool offers recommendations; for your final windlass selection, your local distributor will be able to advise and assist you.

Printer Friendly Version

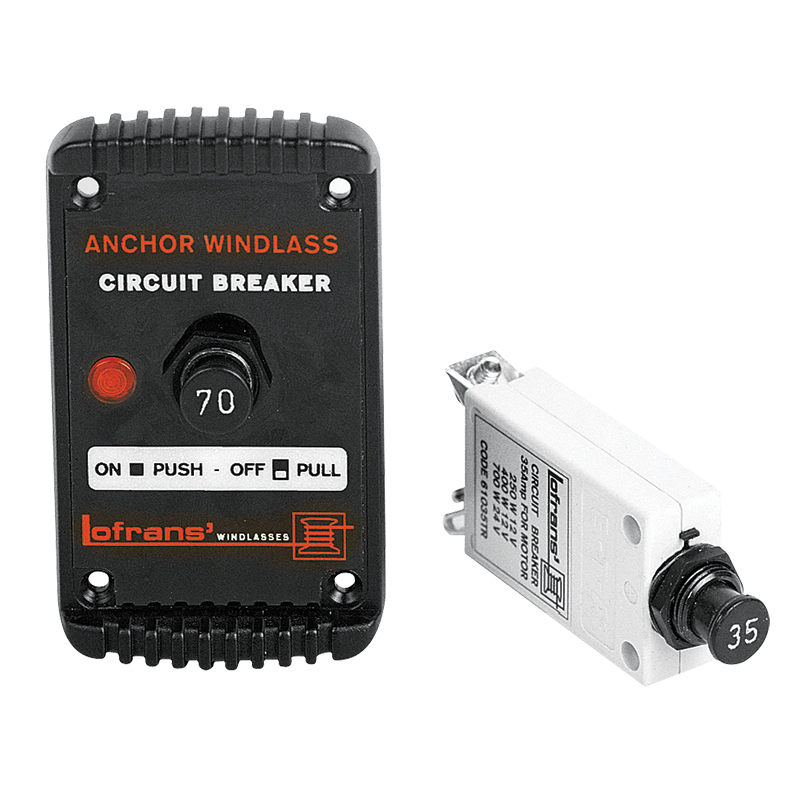

Code	Circuit Breaker	Construction	Gypsy For Chain	Gypsy For Rope	Line Speed at W.L	Max Line Speed	Maximum Pull	Motor size	Net Weight	Power Supply	Type	Amps at Working Load (A)	Working load (kg)

187269	187331	Chromed bronze	8 mm, ISO 4565 DIN 766	12 mm, 3-strand	23 m/min	26 m/min	630 kg	500 W	11 kg	12 V	Low Profile	75	95
187270	187331	Chromed in bronze	8 mm, ISO 4565 DIN 766	12 mm, 3-strand	23 m/min	26 m/min	630 kg	500 W	12 kg	12 V	With Drum	75	95
409557	187331	Aluminium	6 mm, ISO 4565 DIN 766	10-12 mm, 3-strand	23 m/min	26 m/min	630 kg	500 W	10 kg	12 V	Low Profile	75	95
409558	187331	Aluminium	6 mm, ISO 4565 DIN 766	10-12 mm, 3-strand	23 m/min	26 m/min	630 kg	500 W	11 kg	12 V	With Drum	75	95
472880	187331	Chromed bronze	6 mm, ISO 4565 DIN 766	10-12 mm, 3-strand	23 m/min	26 m/min	630 kg	500 W	11 kg	12 V	Low Profile	75	95
472881	187331	Chromed bronze	6 mm, ISO 4565 DIN 766	10-12 mm, 3-strand	23 m/min	26 m/min	630 kg	500 W	12 kg	12 V	With Drum	75	95
473002		Chromed bronze	8 mm, ISO 4565 DIN 766	12 mm, 3-strand	25 m/min	28 m/min	700 kg	800 W	13 kg	12 V	Low Profile	80	100
473003		Chromed bronze	8 mm, ISO 4565 DIN 766	12 mm, 3-strand	25 m/min	28 m/min	700 kg	800 W	14 kg	12 V	With Drum	80	100
473207		Chromed bronze	6 mm, ISO 4565 DIN 766	10-12 mm, 3-strand	25 m/min	28 m/min	700 kg	800 W	14 kg	12 V	With Drum	80	100
473217		Chromed bronze	6 mm, ISO 4565 DIN 766	10-12 mm, 3-strand	25 m/min	28 m/min	700 kg	800 W	13 kg	12 V	Low Profile	80	100

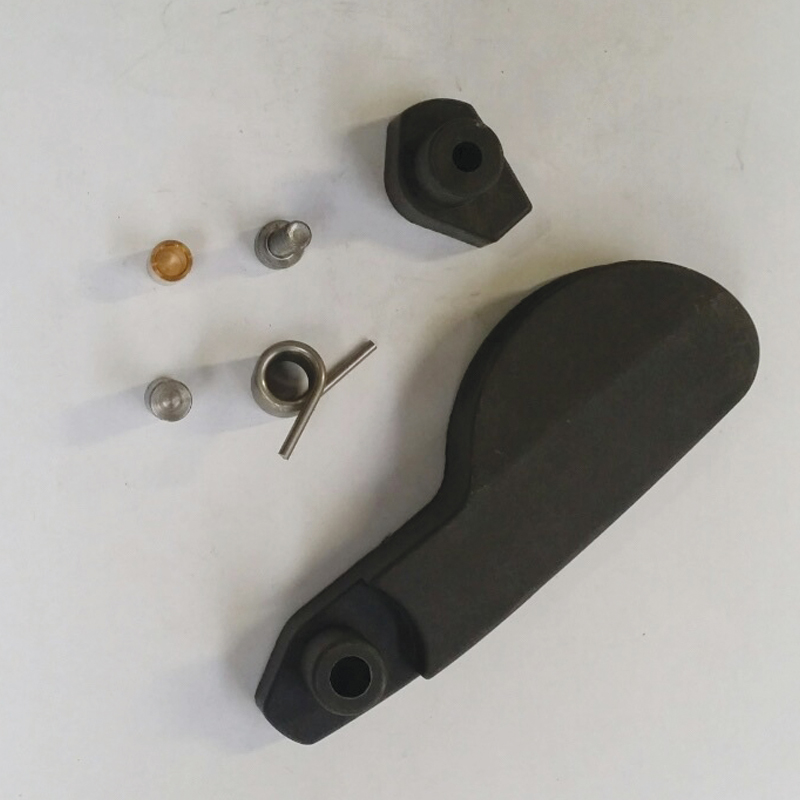

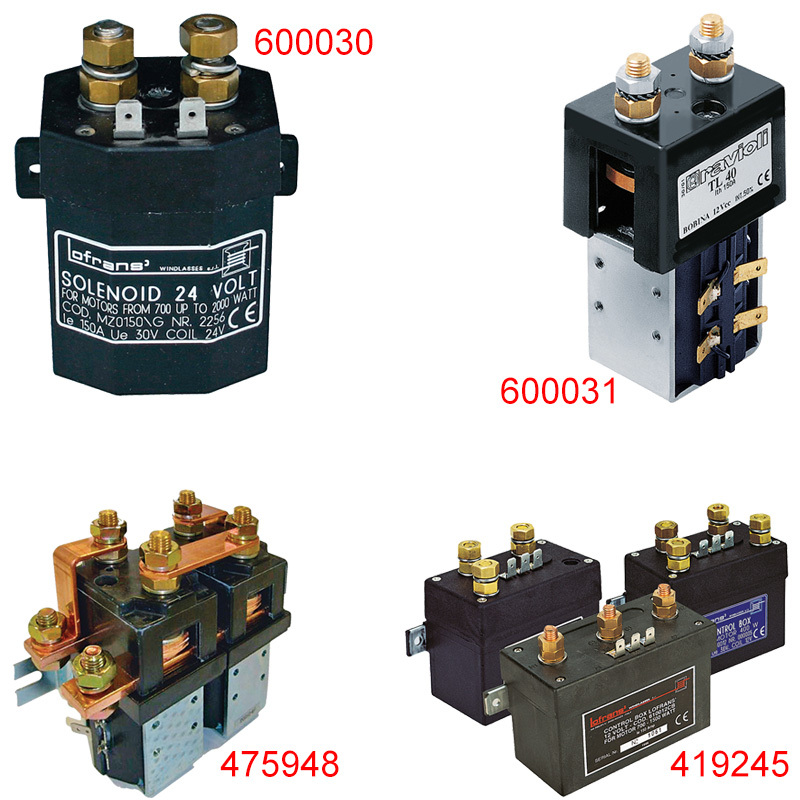

57449
600092	187333	Chromed bronze	8 mm, ISO 4565 DIN 766	12 mm, 3-strand	18 m/min	30 m/min	900 kg	1000 W	17 kg	12 V	With Drum	120	125
600093	187333	Chromed bronze	8 mm, ISO 4565 DIN 766	12 mm, 3-strand	18 m/min	30 m/min	900 kg	1000 W	16 kg	12 V	Low Profile	120	125
600980
602106
602107
602108
602109

Category Filter

File	Category
Installation And User's Manual ~ X1 - X1 ALU - X1 Dark Version Download	Manuals	Download
Lofrans' Oil Capacities Download	Technical Information	Download
3D CAD Model ~ X1 Low Profile 1000W Download	3D Models	Download
3D CAD Model ~ X1 Low Profile 500-800W Download	3D Models	Download
3D CAD Model ~ X1 With Drum 1000W Download	3D Models	Download
3D CAD Model ~ X1 With Drum 500-800W Download	3D Models	Download
Deck Template ~ X1 (dwg) Download	Deck Templates	Download
Deck Template ~ X1 (pdf) Download	Deck Templates	Download
