SX7 - Vertical Windlass

The brand new Lofrans’ SX7 is the ideal option for the popular range of Mega Yachts of 80 -120 ft.

It combines top performance, absolute safety and style, while it is suitable for chains of 12-14 mm.

As all Lofrans’ windlasses, the SX7 is made of marine grade materials for extra mechanical strength and in order to withstand the marine environment.

Main features:

  • Luxury stainless steel base and drum
  • Independent gypsy and drum operation
  • Manual chain release
  • Chain counter magnet pre-installed as standard
  • Anodised gearbox suitable for marine use
  • Available DC, AC and hydraulic motors
  • Chain pipe included in the package

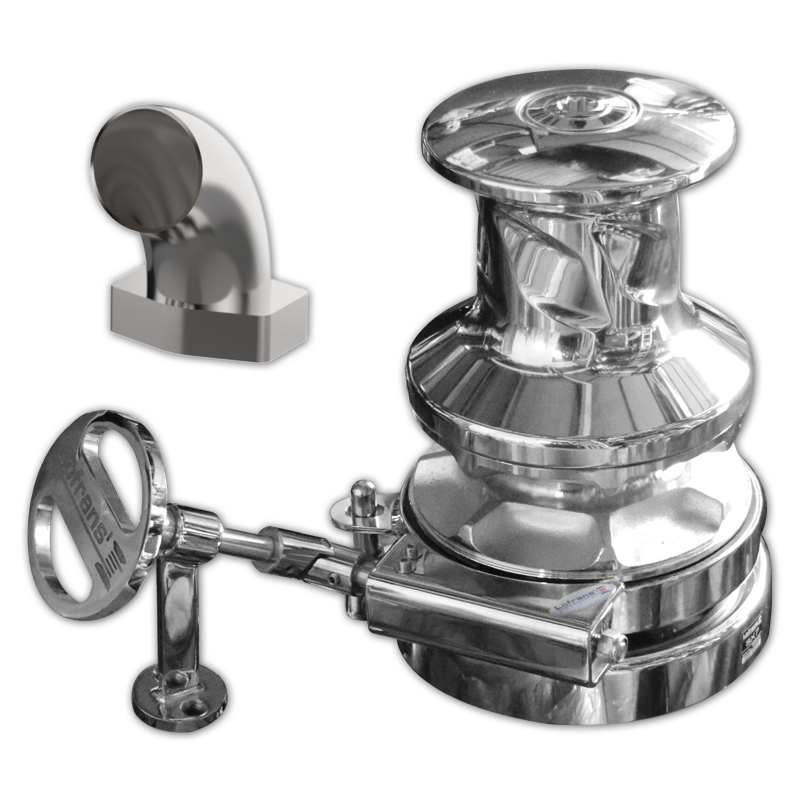

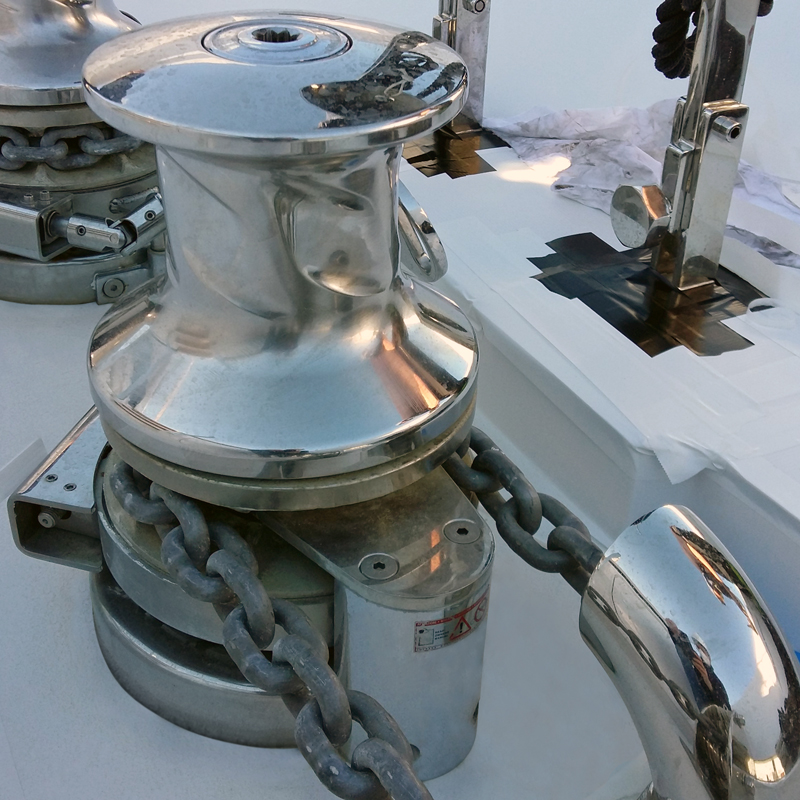

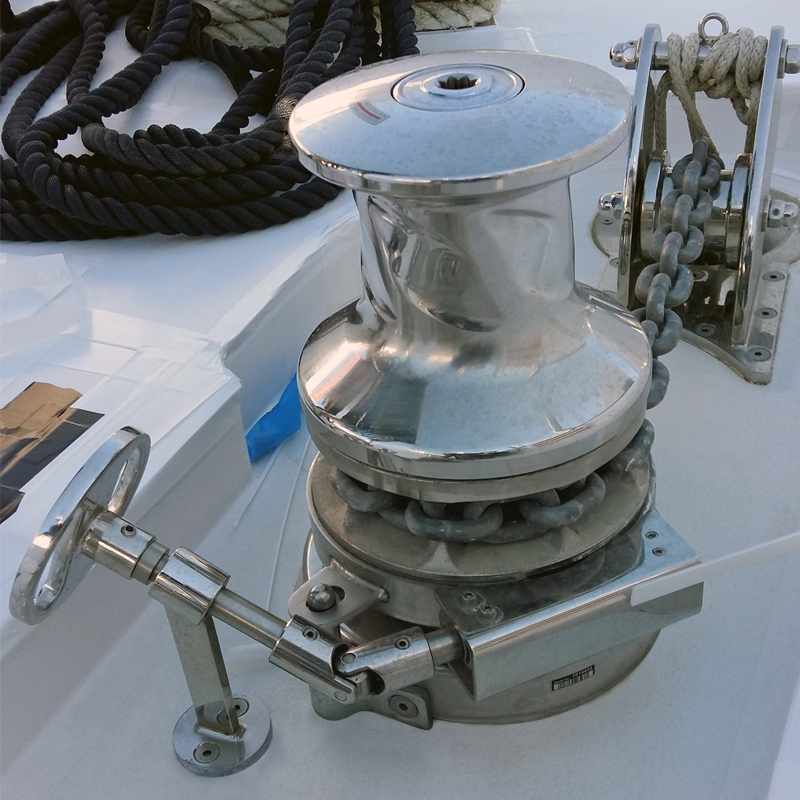

SX7 - Vertical Windlass_photo-0 SX7 - Vertical Windlass_photo-1 SX7 - Vertical Windlass_photo-2 SX7 - Vertical Windlass_photo-3
Printer Friendly Version

Code Motor size Power Supply Maximum Pull Line Speed at W.L Max Line Speed Circuit Breaker Hydraulic Pressure Hydraulic Flow Type Gypsy For Chain Amps Work Load (A) Net Weight with Drum (kg) Working load (kg) Control Box
636459 3500W 24 4500 13 20 Yes (available separately) - - With Drum (cw) 12mm, ISO 4565/ 13mm, DIN 766 200 160 825 Included in the package
636464 3500W 24 4500 13 20 Yes (available separately) - - With Drum (ccw) 12mm, ISO 4565/ 13mm, DIN 766 200 160 825 Included in the package
636518 3500W 24 4500 13 20 Yes (available separately) - - With Drum (cw) 14 mm 200 160 825 Included in the package
636519 3500W 24 4500 13 20 Yes (available separately) - - With Drum (ccw) 14 mm 200 160 825 Included in the package
636520 4000W 230-400 4500 13 13 - - - With Drum (cw) 12mm, ISO 4565/ 13mm, DIN 766 - 160 850 Included in the package
636521 4000W 230-400 4500 13 13 - - - With Drum (ccw) 12mm, ISO 4565/ 13mm, DIN 766 - 160 850 Included in the package
636522 4000W 230-400 4500 13 13 - - - With Drum (cw) 14 mm - 160 850 Included in the package
636523 4000W 230-400 4500 13 13 - - - With Drum (ccw) 14 mm - 160 850 Included in the package
636524 Hydraulic - 8cc - 5000 13 13 - 200 32 With Drum (cw) 14 mm - 145 1000 -
636525 Hydraulic - 8cc - 5000 13 13 - 200 32 With Drum (ccw) 14 mm - 145 1000 -
636526 Hydraulic - 8cc - 5000 13 13 - 200 32 With Drum (cw) 12mm, ISO 4565/ 13mm, DIN 766 - 145 1000 -
636527 Hydraulic - 8cc - 5000 13 13 - 200 32 With Drum (ccw) 12mm, ISO 4565/ 13mm, DIN 766 - 145 1000 -
File
SX7 Manual_EN Download
SX7_Product Announcement_EN Download
SX7_Product Announcement_IT Download
Exploded Diagram - SX7 Windlass Download
3D CAD Model ~ SX7 3500-4000W With Drum Download
3D CAD Model ~ SX7_Hydraulic-8cc_With_Drum Download
SX7 3500-4000W_LOW_PRO Download
Deck Template - SX7 Windlass Download
Deck Template - SX7 Windlass Download
