DRUM WINCH - Multifunctional Winch

Main Features

  • Fast and easy rope & chain anchoring for boats up to 40 feet / 12 metres
  • Marine AISI 316 Stainless Steel drum, base & backing plate
  • Anodised aluminium gear case
  • Heavy-duty electric motor and gearbox
  • IP67 motor cover
  • Gearbox with 8 adjustable positions

Standard Equipment:

  • Drum winch assembly
  • Dual direction solenoid pack
  • Rocker switch
  • Circuit breaker
  • Backing plate
  • Fixing hardware
  • 70 metres of rope (Ø12mm 3-strand)
  • 8 metres of chain (Ø6mm)

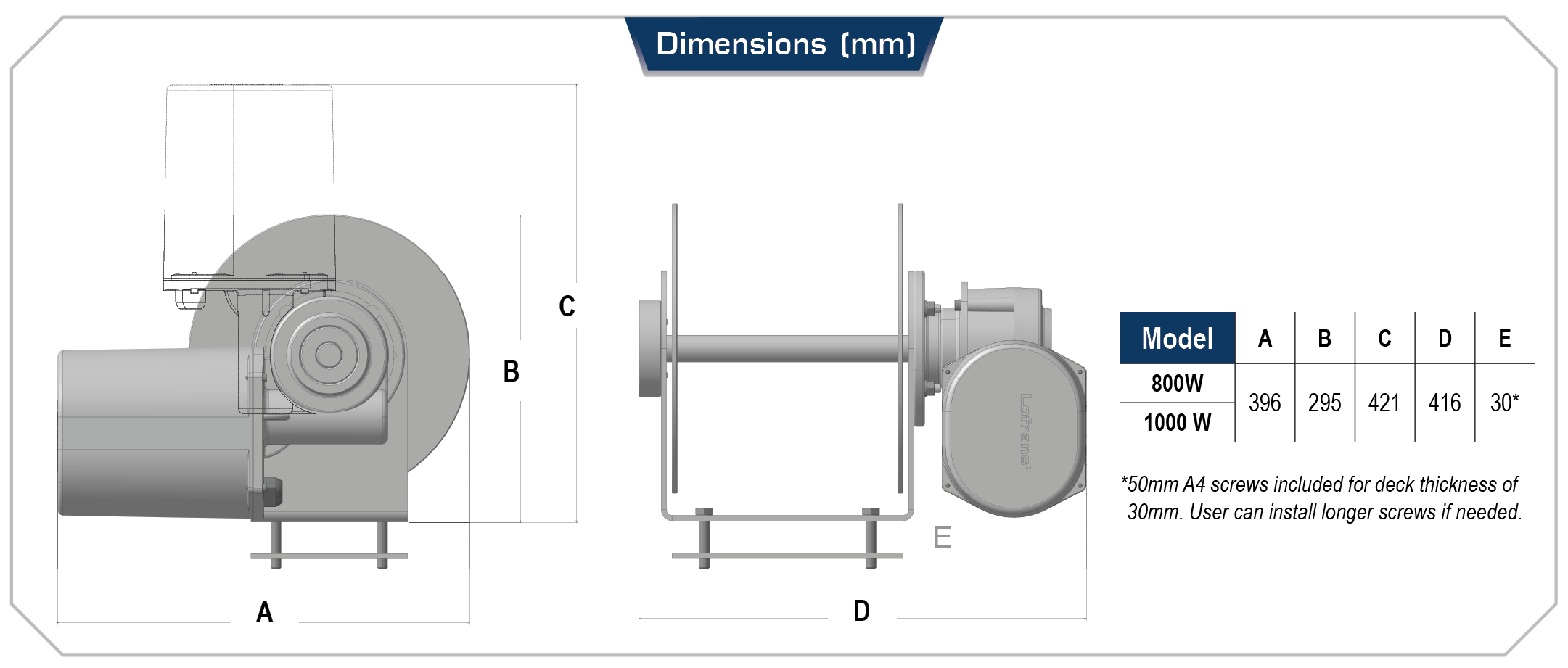

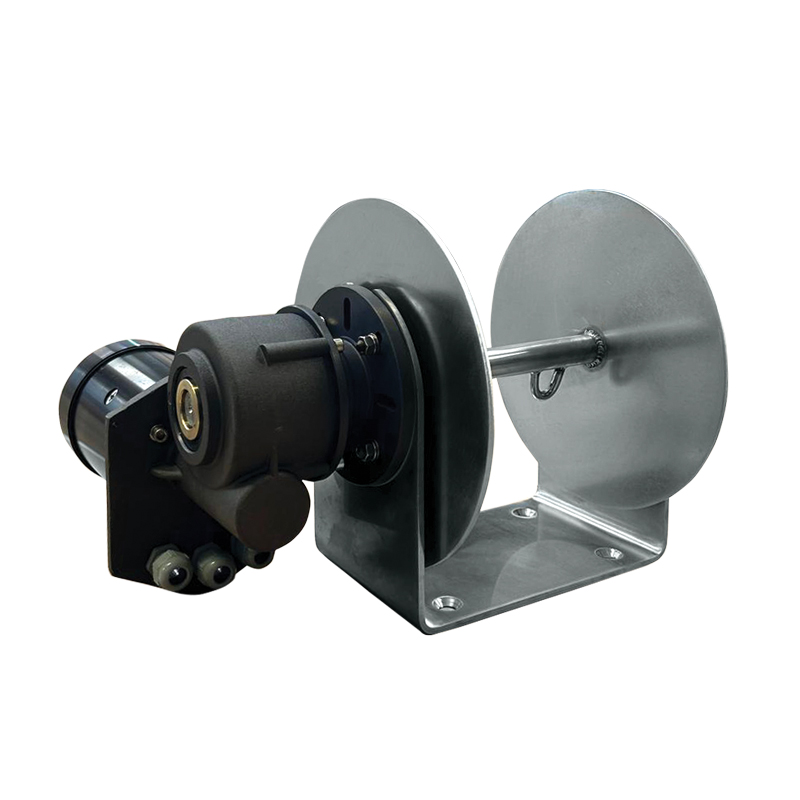

DRUM WINCH - Multifunctional Winch_photo-0 DRUM WINCH - Multifunctional Winch_photo-1
Printer Friendly Version

Code Motor size Power Supply Max. Pull-Empty Drum Max. Pull-Full Drum Amps at Working Load (A) Max. Retrieval Rate Max. Fall Rate Rope/chain Capacity Net Weight
634222 800W 12 V 700kg 170kg 110 36 (m/min) 50 (m/min) 12mm nylon 3-strand rope / 6mm chain 17kg
634225 800W 12 V 700kg 170kg 110 36 (m/min) 50 (m/min) - 17kg
636690 1000W 12kg 900kg 220kg 135 45 (m/min) 50 (m/min) 12mm nylon 3-strand rope / 6mm chain 19kg
636759 1000W 12kg 900kg 220kg 135 45 (m/min) 50 (m/min) - 19kg
File
Drum Winch Manual Download
